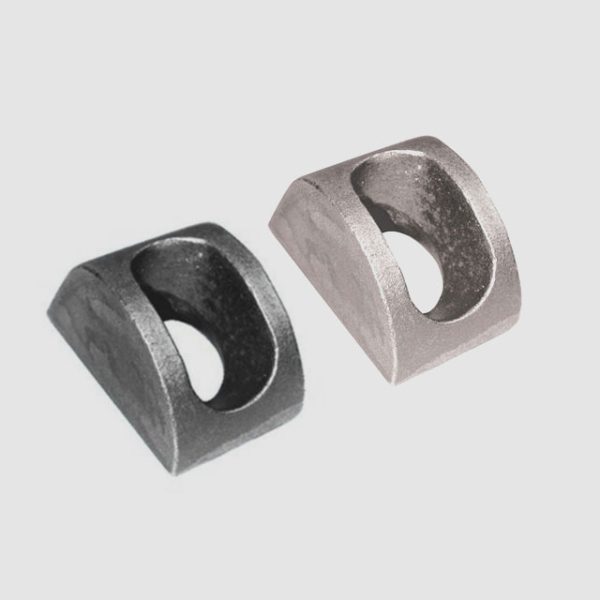

Fastening into sloped roof trusses, solar racking, angled beams, or uneven structural members presents a unique challenge: standard flat washers cannot make full contact with the angled surface, leading to point loading, bolt bending, and compromised joint integrity. Asia Bolts Industries LLC supplies precision-engineered hillside washers (also known as tapered washers, beveled washers, or wedge washers) designed with a matching taper that ensures full bearing contact on sloped surfaces, distributes clamp load evenly, and prevents fastener failure in roofing, solar, timber, and structural applications.

As a leading fastener manufacturer in UAE, we produce hillside washers in standard taper angles (8% per DIN 434, 14% per DIN 435) and custom configurations to match specific slope requirements. Each washer is manufactured to exacting standards with rigorous quality control to ensure dimensional accuracy, precise taper angle, and reliable performance. Our Dubai-based facility ensures fast turnaround and certified quality for renewable energy, construction, and infrastructure projects across the Middle East and globally.

Technical Specifications

Why Hillside Washers Are Essential for Sloped Surfaces

When fastening on an angle, standard flat washers create critical problems that hillside washers solve:

• Problem: Point Loading → Solution: Tapered face matches slope for full bearing contact, distributing load evenly.
• Problem: Bolt Bending → Solution: Parallel bearing surfaces prevent bolt shank from bending under torque.
• Problem: Nut Loosening → Solution: Full contact reduces vibration-induced rotation and maintains preload.
• Problem: Surface Damage → Solution: Larger bearing area prevents crushing of wood, composite, or thin-gauge metal.

Standard Taper Angles & Applications

Selecting the correct taper angle ensures proper fit and performance on your specific slope:

🔹 8% Taper (DIN 434) – Shallow Slopes

• Taper Angle: ~4.5° slope
• Typical Use: Low-pitch roofing, shallow-angle solar racking, European structural sections
• Applications: Residential solar mounts, warehouse roofing, light timber framing

🔹 14% Taper (DIN 435) – Steep Slopes

• Taper Angle: ~8° slope
• Typical Use: Steep-pitch roofing, angled structural beams, American standard sections
• Applications: Commercial solar farms, industrial roof trusses, bridge bracing

🔹 Custom Taper Angles

• Design: Manufactured to customer-specified angle for unique slope requirements
• Function: Accommodates non-standard roof pitches, specialized racking systems, or custom fabrication
• Process: Submit slope measurement or drawing; our engineering team will manufacture to exact specifications

Material Selection Guide

Choosing the correct material ensures optimal performance for your environment:

• Carbon Steel (C1018, A36): Most economical option for indoor or protected applications. Finish: zinc plated or HDG for corrosion protection.
• Hot Dip Galvanized Steel: Carbon steel with thick zinc coating per ASTM A153 for long-term outdoor corrosion protection in solar, roofing, and infrastructure projects.
• Stainless Steel 304/316: Excellent corrosion resistance for coastal solar farms, chemical environments, or high-humidity applications. 316 preferred for marine/saltwater exposure.
• Custom Alloys: Available upon request for extreme environments (e.g., weathering steel for architectural applications).

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every hillside washer undergoes comprehensive quality assurance:

• Material Verification: PMI testing and mill certificates to confirm steel grade and chemical composition per specification.
• Precision Blanking: Laser cutting or stamping to achieve exact outer dimensions and inner hole geometry.
• Taper Forming: CNC machining or precision stamping to achieve accurate taper angle (8%, 14%, or custom) with tight tolerance control.
• Angle Verification: Digital angle gauges or optical measurement to verify taper angle per DIN 434/435 or customer specification.
• Surface Treatment: Hot dip galvanizing, zinc plating, or powder coating per customer specification with thickness verification.
• Dimensional Inspection: CMM or optical measurement of ID, OD, thickness (both edges), taper angle, and flatness.
• Final Quality Audit: Statistical sampling for coating integrity, dimensional compliance, angle accuracy, and visual defects before packaging.

Installation Best Practices

To ensure optimal performance of hillside washers, follow these guidelines:

• Measure the Slope: Use a digital angle gauge or inclinometer to determine the exact slope angle before ordering washers.
• Correct Orientation: Always install the tapered face against the sloped surface and the flat face toward the nut/bolt head.
• Proper Torque: Use calibrated torque wrenches; avoid over-tightening which can distort the washer or damage the substrate.
• Surface Preparation: Ensure the sloped surface is clean and free of debris to allow full metal-to-metal contact.
• Material Compatibility: Match washer material to substrate to prevent galvanic corrosion; use insulating washers if dissimilar metals contact in wet environments.
• Inspection: Periodically inspect washers in service for signs of corrosion, deformation, or loosening, especially in critical solar or structural applications.
