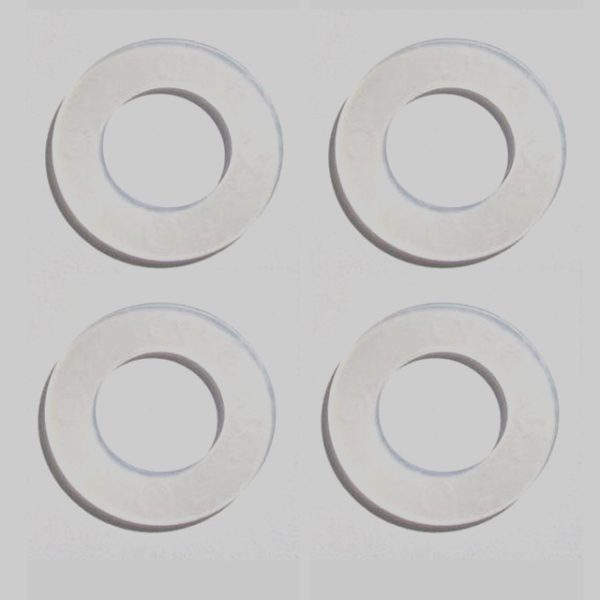

Nylon Washer

Nylon Washers for Electrical Insulation & Corrosion Resistance

When metal washers cannot be used due to electrical conductivity, corrosion concerns, or weight restrictions, Asia Bolts Industries LLC supplies precision-engineered nylon washers (also known as plastic washers or insulating washers) designed to provide reliable electrical insulation, chemical resistance, and surface protection in demanding applications. Manufactured from high-quality nylon 6 (PA6) or nylon 66 (PA66), these versatile washers are essential for electrical panels, PCB mounting, marine hardware, automotive assemblies, and any application requiring non-conductive, non-corrosive, or lightweight fastening solutions.

As a leading fastener manufacturer in UAE, we produce nylon washers in a comprehensive range of sizes, thicknesses, and material grades to meet diverse engineering requirements. Each washer is manufactured to exacting international standards (DIN 125, ISO 7089) or customer specifications with rigorous quality control to ensure dimensional accuracy, consistent material properties, and reliable performance. Our Dubai-based facility ensures fast turnaround and certified quality for projects across the Middle East and globally.

Technical Specifications

Key Benefits of Nylon Washers

Nylon washers provide unique advantages over metal washers in specific applications:

• Electrical Insulation: Excellent dielectric properties prevent electrical conduction, ideal for panel mounting, PCB hardware, and electrical enclosures.
• Corrosion Resistance: Impervious to rust, electrolytic corrosion, and most chemicals—perfect for marine, chemical processing, and outdoor applications.
• Lightweight: Significantly lighter than metal washers, beneficial for automotive, aerospace, and portable equipment where weight reduction is critical.
• Surface Protection: Soft, non-marring surface protects painted, polished, or delicate materials from scratching or damage during installation.
• Non-Magnetic: Ideal for applications where magnetic interference must be avoided (electronics, medical equipment, scientific instruments).
• Cost-Effective: Economical alternative to stainless steel or exotic alloys for corrosion-resistant applications.
• Low Friction: Self-lubricating properties reduce wear and galling in dynamic assemblies.

Nylon Material Selection Guide

Choosing the correct nylon grade ensures optimal performance for your environment:

🔹 Nylon 6 (PA6)

• Properties: Good mechanical strength, excellent abrasion resistance, good chemical resistance to oils and fuels.
• Temperature Range: -40°C to +80°C continuous.
• Applications: General purpose electrical insulation, automotive interior components, consumer products, and light industrial applications.
• Advantages: Cost-effective, good impact resistance, easy to machine.

🔹 Nylon 66 (PA66)

• Properties: Higher strength, stiffness, and temperature resistance than PA6; better chemical resistance.
• Temperature Range: -40°C to +120°C continuous.
• Applications: High-temperature electrical assemblies, automotive under-hood components, industrial machinery, and demanding chemical environments.
• Advantages: Superior mechanical properties, better creep resistance, wider temperature range.

🔹 Glass-Filled Nylon (PA66-GF30)

• Properties: 30% glass fiber reinforcement for increased strength, stiffness, and dimensional stability.
• Temperature Range: -40°C to +150°C continuous.
• Applications: Structural applications requiring high load capacity, high-temperature environments, and precision dimensional control.
• Advantages: Highest strength and stiffness of nylon grades, reduced thermal expansion, excellent creep resistance.

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every nylon washer undergoes comprehensive quality assurance:

• Material Verification: Certificate of Analysis and material testing to confirm nylon grade (PA6, PA66, or glass-filled) and properties per specification.
• Precision Molding/Stamping: Injection molding or precision stamping to achieve exact dimensions, flatness, and surface finish per DIN/ISO standards.
• Dimensional Inspection: Optical measurement or CMM verification of ID, OD, thickness, flatness, and concentricity.
• Electrical Testing: Optional dielectric strength and volume resistivity testing for critical electrical insulation applications.
• Chemical Resistance Verification: Material certification confirming resistance to specified chemicals per application requirements.
• Visual Inspection: 100% inspection for surface defects, flash, or dimensional anomalies before packaging.
• Final Quality Audit: Statistical sampling for dimensional compliance, material properties, and documentation completeness.

Installation Best Practices

To ensure optimal performance of nylon washers, follow these guidelines:

• Correct Sizing: Select washer ID to match bolt/screw diameter with minimal clearance; ensure OD provides adequate bearing area for the substrate material.
• Torque Control: Nylon has lower strength than metal; use calibrated torque wrenches and follow specified values to avoid over-compression or stripping.
• Temperature Considerations: Ensure operating temperature remains within the nylon grade’s continuous range; account for thermal expansion in precision applications.
• Chemical Compatibility: Verify nylon grade compatibility with chemicals in the application environment; consult our technical team for specific chemical resistance data.
• UV Exposure: For outdoor applications, specify UV-stabilized nylon or protective coatings to prevent degradation from sunlight.
• Creep Consideration: In long-term load applications, account for nylon’s creep characteristics; consider glass-filled grades for higher load capacity.
• Inspection: Periodically inspect nylon washers in service for signs of wear, cracking, or chemical degradation; replace as part of preventive maintenance.
