Tooth Lock Washer

Tooth Lock Washers for Positive Mechanical Locking & Vibration Resistance

In assemblies subject to vibration, shock, or dynamic loads, standard fasteners can loosen over time—potentially leading to equipment failure or safety hazards. Asia Bolts Industries LLC supplies precision-engineered tooth lock washers (also known as serrated lock washers, star washers, or toothed washers) designed with sharp, radially oriented teeth that bite into bearing surfaces and/or nut faces to provide positive mechanical locking action. These specialized washers deliver reliable vibration resistance without the need for chemical adhesives or complex locking mechanisms.

As a leading fastener manufacturer in UAE, we produce tooth lock washers in multiple configurations, materials, and sizes to meet diverse engineering requirements. Each washer is manufactured to exacting international standards (DIN 6797, DIN 6798, JIS B1251) with rigorous quality control to ensure consistent tooth geometry, hardness, and locking performance. Our Dubai-based facility ensures fast turnaround and certified quality for automotive, electrical, industrial, and infrastructure projects across the Middle East and globally.

Technical Specifications

How Tooth Lock Washers Work

Tooth lock washers provide mechanical locking through a simple but effective principle:

• Sharp Teeth: Radially oriented, hardened teeth are designed to bite into mating surfaces.
• Internal Tooth Washers: Teeth on the inner diameter bite into the bolt head or nut face, preventing rotation relative to the fastener.
• External Tooth Washers: Teeth on the outer diameter bite into the bearing surface (e.g., metal panel, chassis), preventing rotation relative to the assembly.
• Combined Tooth Washers: Teeth on both ID and OD provide maximum locking security by biting into both fastener and bearing surface simultaneously.
• Spring Action: The washer’s slight conical shape provides axial spring force that maintains tooth engagement under vibration.

Key Benefits of Tooth Lock Washers

Tooth lock washers provide unique advantages for vibration-prone applications:

• Positive Mechanical Locking: Teeth physically bite into surfaces to prevent rotation—no reliance on friction or chemical adhesives.
• Superior Vibration Resistance: Proven performance in automotive, aerospace, and industrial applications subject to shock and vibration.
• Reusable (Limited): Can be reused in non-critical applications if teeth remain sharp and undamaged (always inspect before reuse).
• Electrical Grounding: Teeth penetrate surface oxides and coatings, providing reliable electrical contact for grounding applications.
• Cost-Effective Security: Simple, economical solution compared to complex locking nuts or thread-locking compounds.
• Wide Compatibility: Available in multiple sizes, materials, and tooth configurations to suit diverse applications.

Types of Tooth Lock Washers

Selecting the correct tooth configuration ensures optimal locking performance for your application:

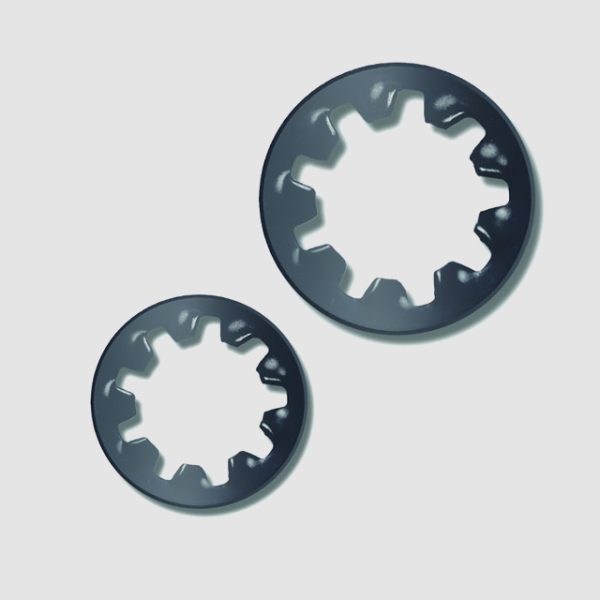

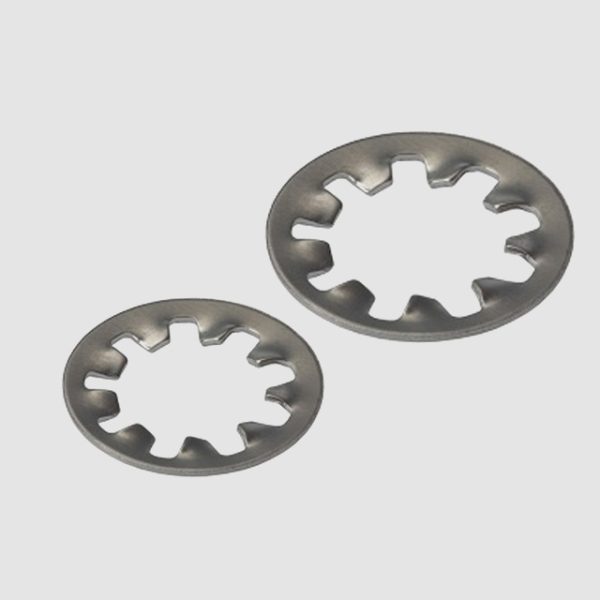

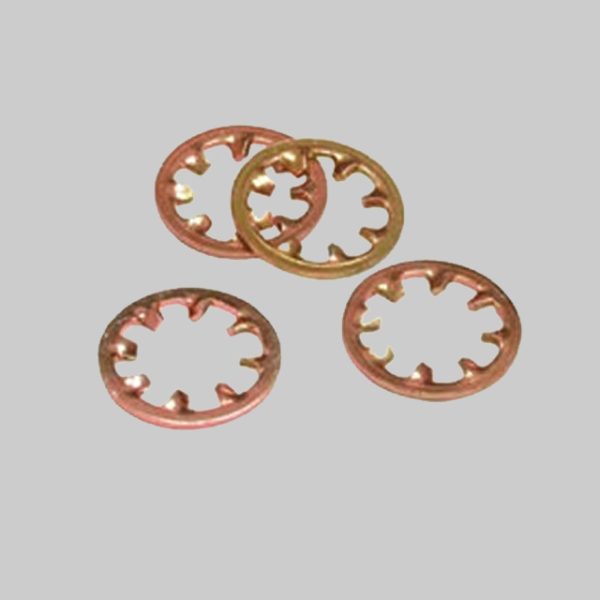

🔹 Internal Tooth Washers (DIN 6797 Form A)

• Design: Teeth oriented radially inward on the inner diameter.
• Function: Teeth bite into bolt head or nut face; ideal when bearing surface is soft, painted, or sensitive to damage.
• Applications: Electrical terminals, automotive trim, sheet metal assemblies, and applications where outer surface finish must be preserved.
• Advantages: Protects bearing surface; clean external appearance; effective locking on fastener side.

🔹 External Tooth Washers (DIN 6797 Form B)

• Design: Teeth oriented radially outward on the outer diameter.
• Function: Teeth bite into bearing surface; ideal when fastener head/nut is hardened or smooth.
• Applications: Machinery mounting, chassis assemblies, structural connections, and applications requiring strong bite into base material.
• Advantages: Maximum grip on bearing surface; excellent for soft metals, plastics, or composites.

🔹 Combined Tooth Washers (DIN 6798)

• Design: Teeth on both inner and outer diameters.
• Function: Dual locking action bites into both fastener and bearing surface for maximum security.
• Applications: Critical safety applications, high-vibration environments, aerospace, and heavy equipment where failure is not an option.
• Advantages: Highest level of vibration resistance; redundant locking mechanism; ideal for extreme service conditions.

Material Selection Guide

Choosing the correct material ensures optimal performance for your environment:

• Carbon Spring Steel (C67, 1070): Most common material with excellent hardness (44-53 HRC) and tooth sharpness retention. Suitable for general industrial applications. Finish: zinc plated, black oxide, or phosphate for corrosion protection.
• Stainless Steel 304 (A2): Excellent corrosion resistance for food processing, chemical, marine, and outdoor applications. Work-hardened to achieve adequate tooth hardness.
• Stainless Steel 316 (A4): Superior chloride resistance for coastal, offshore, and highly corrosive chemical environments. Slightly lower hardness than 304 but better corrosion performance.
• Brass/Phosphor Bronze: Non-magnetic, corrosion-resistant, and electrically conductive. Preferred for electrical grounding applications and non-sparking environments.

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every tooth lock washer undergoes comprehensive quality assurance:

• Material Verification: PMI testing and mill certificates to confirm steel grade and chemical composition per specification.
• Precision Stamping: High-speed progressive die stamping to achieve exact tooth geometry, pitch, and sharpness per DIN standards.
• Heat Treatment: Hardening and tempering for carbon steel washers to achieve specified hardness (44-53 HRC) for optimal tooth penetration and retention.
• Tooth Geometry Inspection: Optical measurement or CMM verification of tooth count, angle, height, and sharpness to ensure consistent locking performance.
• Surface Treatment: Plating or coating per customer specification with thickness verification and adhesion testing.
• Functional Testing: Optional vibration testing or torque-out testing to validate locking performance under simulated service conditions.
• Final Quality Audit: Statistical sampling for coating integrity, dimensional compliance, tooth sharpness, and visual defects before packaging.

Installation Best Practices

To ensure optimal performance of tooth lock washers, follow these guidelines:

• Correct Orientation: Install internal tooth washers with teeth facing the nut/bolt head; install external tooth washers with teeth facing the bearing surface. Combined washers work in either orientation.
• Surface Preparation: Ensure bearing surfaces are clean and free of thick paint, heavy rust, or soft coatings that could prevent proper tooth engagement. Light surface preparation may improve locking performance.
• Proper Torque: Tooth lock washers increase friction during tightening; use calibrated torque wrenches and follow specified values. Do not over-torque, which can strip teeth or damage soft surfaces.
• Single-Use Consideration: For critical safety applications, treat tooth lock washers as single-use components. Reused washers may have dulled teeth that compromise locking performance.
• Material Compatibility: Match washer material to bearing surface to prevent galvanic corrosion; use insulating washers if dissimilar metals contact in wet environments.
• Inspection: Periodically inspect tooth lock washers in service for signs of tooth wear, corrosion, or loosening; replace as part of preventive maintenance in critical applications.
