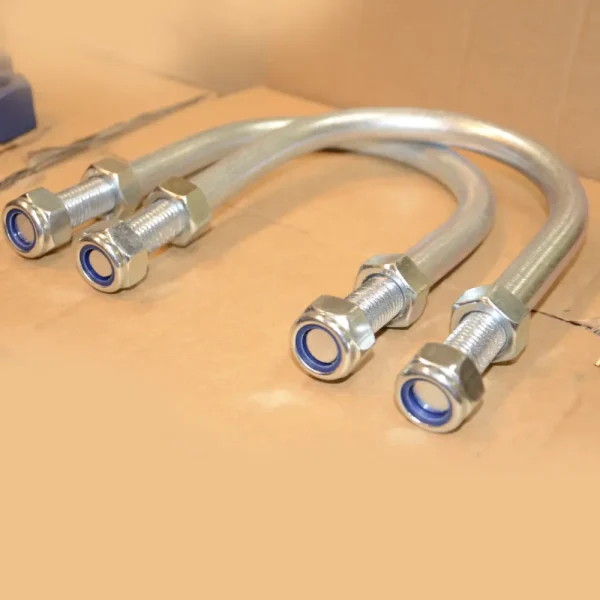

Heavy Duty U-Bolt

Heavy Duty U-Bolts for Extreme Industrial Applications

When standard fasteners aren’t enough, heavy duty U-bolts deliver the strength and reliability your project demands. Asia Bolts Industries LLC supplies premium heavy-duty U-bolts engineered for high-load pipe support, structural clamping, and critical equipment mounting in the most demanding industrial environments. These robust fasteners combine oversized diameters, high-strength materials, and precision manufacturing to withstand extreme mechanical stress, vibration, and corrosive conditions.

As a leading fastener manufacturer in UAE, we produce heavy duty U-bolts in a comprehensive range of sizes, grades, and finishes. Each U-bolt is manufactured to exacting international standards and undergoes rigorous quality control to ensure dimensional accuracy, mechanical strength, and long-term performance. Our Dubai-based facility ensures fast turnaround and reliable supply for oil & gas, power generation, marine, and infrastructure projects across the Middle East and globally.

Technical Specifications

Product Type	Heavy Duty U-Bolt (High-Strength Pipe Clamp Bolt)
Standards	ASTM F1554, ASTM A307, ASTM A449, DIN 3570, ISO 14399, Customer Drawings
Grades	Grade 55, Grade 105 (F1554); Grade C, D (A307); Class 8.8, 10.9, 12.9
Material	Carbon Steel (C1045, 4140), Alloy Steel (4140, 4340), Stainless Steel (316, 321), Duplex/Super Duplex
Diameter Range	M16 to M100 (5/8″ to 4″)
Inside Width (A)	50mm to 1000mm+ (2″ to 40″+) custom per pipe OD or structural member
Leg Length (B)	100mm to 2000mm+ (4″ to 80″+) custom based on application
Bend Radius (R)	2D, 3D, 4D (D = bolt diameter) or custom; cold or hot bent for large diameters
Thread Configuration	Threaded both ends (TBE); UNC, UN8, Metric (ISO); rolled threads for fatigue resistance
Surface Finish	Hot Dip Galvanized (ASTM A153), PTFE Coated, Epoxy Powder Coated, Zinc-Nickel, Plain
Load Capacity	Proof load tested per ASTM F606; custom load testing available
Testing	Tensile, Yield, Hardness, Bend Test, Coating Thickness, PMI, Proof Load, Impact (Charpy)
Documentation	MTC EN 10204 3.1, Mechanical Test Reports, Coating Certificates, COC, COO

What Makes U-Bolts “Heavy Duty”?

Heavy duty U-bolts are distinguished from standard U-bolts by several critical design and manufacturing features:

• Oversized Diameters: Larger bolt diameters (M16 to M100+) provide greater tensile and shear strength for high-load applications.
• High-Strength Materials: Alloy steels (4140, 4340) and heat-treated carbon steels deliver superior yield and tensile strength compared to mild steel.
• Enhanced Bend Integrity: Precision hot bending for large diameters prevents cracking and maintains material properties at the bend radius.
• Superior Thread Quality: Cold-rolled threads with Class 6H/6g tolerance provide better fatigue resistance and consistent torque-tension relationship.
• Robust Corrosion Protection: Hot dip galvanizing (ASTM A153), PTFE coating, or epoxy finishes ensure long-term performance in harsh environments.
• Rigorous Testing: Proof load testing, impact testing, and comprehensive inspection protocols verify performance under extreme conditions.

Heavy Duty vs. Standard U-Bolts: Key Differences

Understanding the distinction helps you select the right fastener for your application:

• Load Capacity: Heavy duty U-bolts are proof load tested and rated for significantly higher tensile and shear loads than standard U-bolts.
• Material Grade: Heavy duty versions use alloy or heat-treated steels (Grade 105, Class 10.9+) vs. mild carbon steel for standard U-bolts.
• Diameter Range: Heavy duty U-bolts start at M16 (5/8″) and go up to M100 (4″); standard U-bolts typically max out at M24 (1″).
• Corrosion Protection: Heavy duty U-bolts often feature HDG, PTFE, or epoxy coatings for harsh environments; standard U-bolts may be plain or zinc plated.
• Testing Requirements: Heavy duty U-bolts undergo proof load, impact, and comprehensive mechanical testing; standard U-bolts may only require dimensional inspection.
• Application: Heavy duty for critical, high-load, high-vibration, or corrosive service; standard for general purpose pipe support and light structural clamping.

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every heavy duty U-bolt undergoes a controlled, multi-stage manufacturing process:

• Material Selection: Certified alloy or heat-treated carbon steel with PMI verification to confirm grade and chemical composition.
• Precision Bending: Hydraulic pressing or induction heating for hot bending of large diameters to achieve exact bend radius without material degradation.
• Thread Rolling: Cold-rolled threads using precision dies for superior fatigue strength and consistent Class 6H/6g tolerance.
• Heat Treatment: Quenching and tempering for alloy grades to achieve specified hardness, yield strength, and impact toughness per ASTM standards.
• Surface Treatment: Hot dip galvanizing per ASTM A153 (min. 85µm), PTFE coating, or epoxy powder coating with thickness verification and adhesion testing.
• Dimensional Inspection: CMM or laser measurement of inside width, leg length, bend radius, thread pitch, leg parallelism, and overall geometry.
• Mechanical Testing: Tensile testing, yield strength verification, hardness testing, proof load testing per ASTM F606, and optional Charpy impact testing for low-temperature service.
• Final Quality Audit: 100% visual inspection plus statistical sampling for coating integrity, thread engagement, and documentation completeness.

Installation & Selection Guidelines

To ensure optimal performance of heavy duty U-bolts, follow these best practices:

• Load Calculation: Verify U-bolt diameter and grade are sufficient for expected tensile, shear, and dynamic loads; consult engineering specifications or our technical team.
• Proper Sizing: Inside width should accommodate pipe OD + insulation/gasket thickness + minimal clearance (typically 3-6mm) for thermal expansion.
• Leg Length: Ensure sufficient thread engagement (minimum 1.5x diameter for heavy duty applications) plus space for hardened washer, nut, and locking device.
• Torque Control: Use calibrated torque wrenches and follow specified torque values; over-torquing can overstress the bend or strip threads.
• Matching Hardware: Always use heavy hex nuts and hardened washers of equal or higher grade than the U-bolt for complete assembly integrity.
• Corrosion Protection: Select finish based on environment: HDG for outdoor/industrial, PTFE/epoxy for chemical exposure, stainless for marine/coastal.
• Inspection: Periodically inspect U-bolts in service for signs of corrosion, cracking at the bend, thread damage, or loosening; replace as part of preventive maintenance.

Request a Quote for Heavy Duty U-Bolts

Ensure your critical applications are secured with certified, high-performance fasteners. Contact Asia Bolts Industries LLC today for competitive pricing on heavy duty U-bolts. Submit your load requirements, pipe specifications, or drawings for a fast, no-obligation engineering quote.

Request a Quote Now | Submit Specifications for Engineering Review
