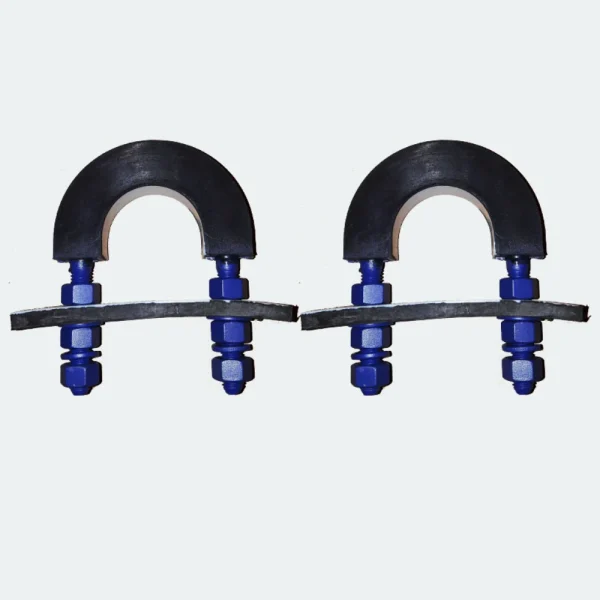

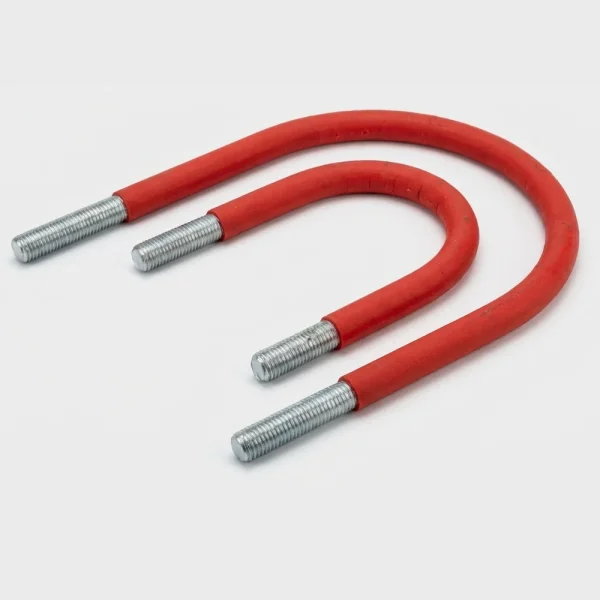

U-Bolt with Rubber Sleeve

U-Bolts with Rubber Sleeve for Vibration Isolation & Pipe Protection

When pipes require support without metal-to-metal contact, U-bolts with rubber sleeves provide the ideal solution. Asia Bolts Industries LLC supplies premium rubber-lined U-bolts engineered to isolate vibration, reduce noise transmission, and protect coated, insulated, or sensitive piping systems from abrasion and galvanic corrosion. These assemblies combine the structural strength of precision U-bolts with the damping properties of high-quality elastomeric sleeves.

As a leading fastener manufacturer in UAE, we produce rubber-sleeved U-bolts in a comprehensive range of sizes, rubber compounds, and configurations. Each assembly is manufactured to exacting standards and undergoes rigorous quality control to ensure dimensional accuracy, sleeve adhesion, and long-term performance. Our Dubai-based facility ensures fast turnaround and reliable supply for projects across the Middle East and globally.

Technical Specifications

Rubber Sleeve Material Selection Guide

Choosing the right elastomer ensures optimal performance for your environment:

• EPDM (Ethylene Propylene Diene Monomer): Excellent weather, ozone, and steam resistance. Ideal for outdoor HVAC, plumbing, and hot water applications. Temperature range: -40°C to +120°C.
• Neoprene (Polychloroprene): Good all-purpose resistance to oils, chemicals, and moderate weathering. Suitable for industrial piping, marine applications, and general-purpose vibration isolation.
• Nitrile (NBR): Superior resistance to oils, fuels, and hydrocarbons. Recommended for oil & gas piping, fuel lines, and automotive exhaust systems.
• Silicone: Extreme temperature resistance (-60°C to +230°C) and food-grade compatibility. Used in pharmaceutical, food processing, and high-temperature applications.
• Viton® (FKM): Premium chemical and high-temperature resistance for aggressive environments in chemical processing and aerospace.

Key Benefits of Rubber-Sleeved U-Bolts

The integrated rubber sleeve provides critical advantages over standard U-bolts:

• Vibration Dampening: Absorbs mechanical vibration from pumps, compressors, and flowing media, reducing noise and fatigue on piping systems.
• Pipe Protection: Prevents abrasion, scratching, or damage to coated, insulated, or soft-material pipes (copper, PVC, fiberglass).
• Galvanic Corrosion Prevention: Electrically isolates dissimilar metals (e.g., stainless pipe to carbon steel support) to prevent electrochemical corrosion.
• Thermal Insulation: Reduces heat transfer between pipe and support structure, improving energy efficiency in HVAC and process systems.
• Noise Reduction: Minimizes structure-borne noise transmission in buildings, ships, and industrial facilities.
• Improved Seal: Conforms to pipe surface for better grip and reduced slippage under thermal expansion/contraction.

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every rubber-sleeved U-bolt undergoes a controlled manufacturing process:

• Engineering Review: Our team reviews your specifications for rubber compound selection, sleeve thickness, and dimensional compatibility before production.
• U-Bolt Fabrication: Precision bending, threading, and finishing per ASTM or customer drawings; PMI verification for material grade.
• Rubber Sleeve Production: Molded or extruded sleeves manufactured to specified compound, hardness (Shore A), and dimensional tolerances.
• Sleeve Integration: Mechanical interlock, adhesive bonding, or vulcanized attachment ensuring sleeve remains secure under load and vibration.
• Adhesion Testing: Peel tests and compression testing to verify sleeve-to-bolt bond strength per application requirements.
• Dimensional Inspection: Laser measurement of inside width, leg length, sleeve thickness, and overall geometry.
• Environmental Testing: Optional ozone resistance, compression set, and temperature cycling tests for critical applications.

Installation Best Practices

To ensure optimal performance of U-bolts with rubber sleeves, follow these guidelines:

• Correct Sizing: Ensure inside width accommodates pipe OD + sleeve thickness + minimal clearance (typically 2-3mm) for thermal expansion.
• Proper Torque: Use calibrated torque wrenches and follow specified values; over-torquing can compress sleeve excessively and reduce damping effectiveness.
• Sleeve Orientation: Position sleeve seam (if present) away from primary load direction to maximize integrity.
• Environmental Compatibility: Verify rubber compound is suitable for operating temperature, chemical exposure, and UV/ozone conditions.
• Inspection: Periodically check sleeve condition for cracking, hardening, or detachment, especially in high-vibration or extreme-temperature applications.
• Replacement: Plan for sleeve replacement as part of maintenance schedules; rubber elastomers have finite service life depending on environment.
