Square Bend U-Bolt

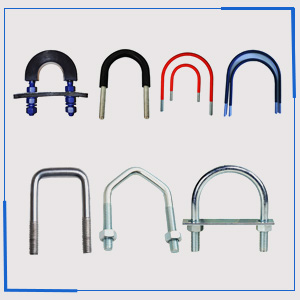

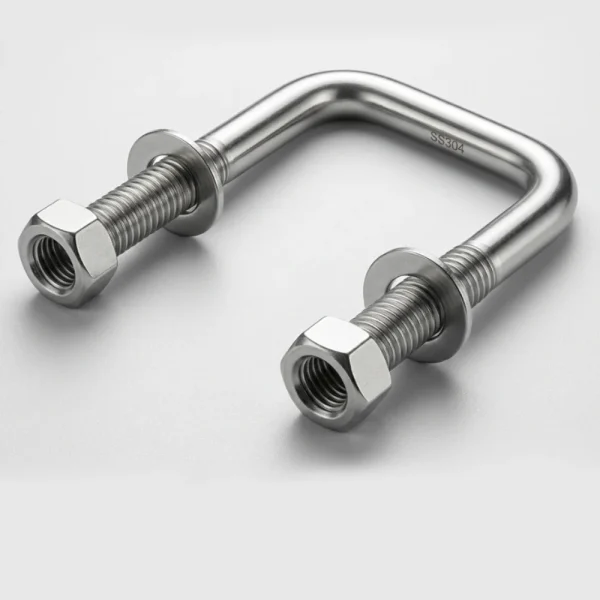

Asia Bolts Industries LLC manufactures Square Bend U-Bolts — also known as square U-bolts, box U-bolts, or right-angle U-bolts — for structural clamping, pipe support, trailer and vehicle chassis, rack and shelving systems, sign and post mounting, and heavy industrial fastening applications where a flat bearing surface and precise corner geometry are required. Unlike round bend U-bolts that conform to cylindrical pipe profiles, square bend U-bolts feature sharp 90° corners that grip flat, square, and rectangular sections firmly — making them the preferred choice for structural steel clamping, timber beam connections, and rectangular tube assemblies.
Manufactured to customer drawings and international standards in any leg length, inside width, thread length, rod diameter, and material grade — with full material traceability and certification on every order.
- Standards: DIN 3570, ASTM A307, BS 4504 — Custom to drawing
- Grades: Grade 4.6, 5.6, 8.8, 10.9 — ASTM Grade A, B — Stainless A2 / A4
- Size Range: M8 to M64 — ⅜” to 2½” imperial
- Inside Width Range: 25mm to 300mm — custom widths to drawing
- Inside Height Range: 50mm to 500mm — custom heights to drawing
- Section Compatibility: Square hollow section, rectangular hollow section, flat bar, timber beam, channel section
- Materials: Carbon Steel, Alloy Steel, Stainless Steel 304 / 316 / 316L, Duplex
- Finish: Plain, Zinc Plated, Hot-Dip Galvanized, Dacromet, PTFE / Xylan, Epoxy Coated
- Supplied With: Two hex nuts + two flat washers per U-bolt as standard
- Certification: Saudi Aramco Approved | ISO 9001:2015 | MTC EN 10204 3.1
Submit your inside width, inside height, rod diameter, leg length, thread length, grade, and finish for a same-day quotation from our technical sales team.
Get a competitive price — we respond within 24 hours
Square Bend U-Bolts for Maximum Surface Contact
When standard round bends don’t provide enough stability, square bend U-bolts offer the superior solution. Asia Bolts Industries LLC supplies high-strength square leg U-bolts engineered with a flat, square-shaped bend profile. This unique geometry provides maximum surface contact against flat surfaces, preventing rotation and ensuring secure clamping for leaf springs, square tubing, and structural beams.
As a leading fastener manufacturer in UAE, we produce square bend U-bolts in a comprehensive range of sizes, materials, and finishes. Each U-bolt is precision-formed to maintain exact bend angles and leg parallelism. Our Dubai-based facility ensures fast turnaround and rigorous quality control for automotive, construction, and industrial projects across the Middle East and globally.
Technical Specifications
| Product Type | Square Bend U-Bolt (Square Leg U-Bolt) |
| Standards | ASTM F1554, A307, A449; DIN 3570; SAE J22; Customer Drawings |
| Material | Carbon Steel (C1018, C1045), Alloy Steel (4140), Stainless Steel (304, 316) |
| Grade/Class | Grade 5, Grade 8, Class 8.8, Class 10.9 |
| Bend Profile | Square/Rectangular with flat bearing surface |
| Inside Width (A) | Custom per application (e.g., leaf spring width, square tube size) |
| Leg Length (B) | Custom based on clamp plate thickness and nut engagement |
| Bolt Diameter | M6 to M72 (1/4″ to 3″) |
| Thread Configuration | Threaded both ends (TBE); UNC, UNF, Metric (ISO) |
| Surface Finish | Plain, Zinc Plated, Hot Dip Galvanized (ASTM A153), Black Oxide, Dacromet |
| Testing | Tensile, Hardness, Bend Test, Coating Thickness, Dimensional Inspection |
| Documentation | MTC EN 10204 3.1, Bend Test Reports, COC, COO |
Advantages of Square Bend U-Bolts
The square bend profile offers distinct advantages over traditional round bends:
- Flat Bearing Surface: The square bend sits flush against flat surfaces (leaf springs, square tubing), distributing load evenly and preventing point loading.
- Anti-Rotation: The flat sides of the bend resist twisting or rotating under torque, maintaining alignment during installation and operation.
- Increased Stability: Provides superior clamping stability for suspension systems and structural connections subject to vibration.
- Better Fit for Square Tubing: Matches the geometry of square or rectangular structural members better than round bends.
- Higher Load Capacity: Reduced stress concentration at the bend compared to tight-radius round bends in certain applications.
Square Bend vs. Round Bend U-Bolts
Choosing the right bend profile is essential for application performance:
- Surface Contact: Square bends provide flat contact; round bends provide point/line contact on flat surfaces.
- Rotation Resistance: Square bends resist rotation; round bends can twist unless guided by a plate.
- Application: Square bends for leaf springs/square tubing; round bends for round pipes/cylinders.
- Manufacturing: Square bends require specialized forming dies; round bends are typically cold-formed on standard benders.
- Cost: Square bends may have slightly higher tooling costs for custom sizes but offer better performance for specific uses.
Manufacturing Process & Quality Control
At Asia Bolts Industries LLC, every square bend U-bolt undergoes a controlled manufacturing process:
- Material Verification: PMI testing and mill certificates to confirm steel grade and chemical composition.
- Precision Forming: Hydraulic pressing or specialized bending dies to achieve exact square profile without cracking or weakening the steel.
- Thread Rolling: Cold-rolled threads for superior fatigue strength, critical for suspension applications.
- Heat Treatment: Quenching and tempering for Grade 8/Class 10.9 U-bolts to achieve required hardness and tensile strength.
- Surface Treatment: Hot dip galvanizing per ASTM A153 for corrosion protection; black oxide for automotive aesthetic.
- Dimensional Inspection: Verification of inside width, leg length, bend squareness, thread pitch, and leg parallelism.
- Load Testing: Optional proof load or fatigue testing for critical automotive or structural applications.
Installation & Selection Guidelines
To ensure optimal performance of square bend U-bolts, follow these guidelines:
- Correct Width: Inside width should match leaf spring or square tube width with minimal clearance (typically 1-2mm) to prevent shifting.
- Leg Length: Ensure sufficient thread engagement (minimum 1x diameter) plus space for washer, nut, and locking device.
- Torque Sequence: Tighten nuts alternately and evenly to avoid bending the U-bolt or damaging the spring/tube.
- Use Matching Plates: Always use a matching square bend top plate to distribute load evenly across the U-bolt bend.
- Re-Torque: For suspension applications, re-torque U-bolts after initial operation (e.g., 50-100 km) to account for settling.
- Corrosion Protection: Select finish based on environment: HDG for outdoor/trailers, Black Oxide for internal automotive parts.
Request a Quote for Square Bend U-Bolts
Secure your suspension and structural connections with certified, high-performance U-bolts. Contact Asia Bolts Industries LLC today for competitive pricing on square bend U-bolts. Submit your dimensions, application details, or drawings for a fast, no-obligation quote.
