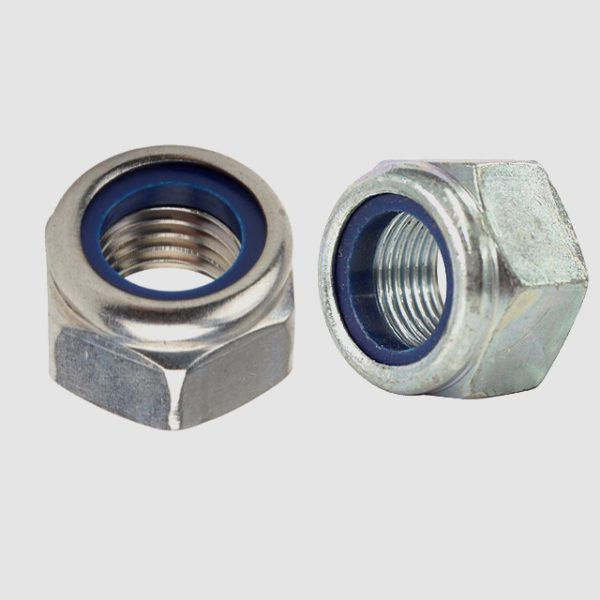

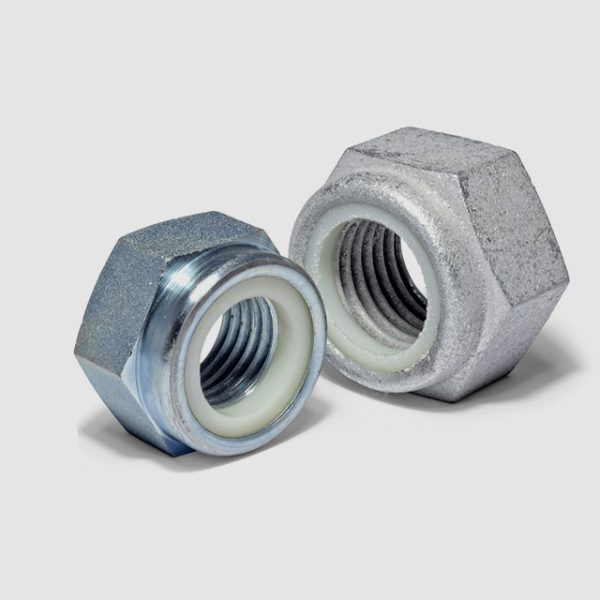

Nylon Lock Nuts
Nylon Lock Nuts (Nylock Nuts) by Asia Bolts Industries are prevailing torque locking nuts featuring a nylon insert collar bonded into the top of the nut that deforms around the bolt thread when tightened — creating a friction-based resistance to rotation that prevents self-loosening under vibration, shock loading, and moderate dynamic forces. Widely recognised as the most cost-effective and universally available locking nut for general industrial, mechanical, and structural applications, Nylon Lock Nuts offer reliable one-piece locking performance without the need for separate washers, adhesives, or secondary locking elements.
Available in full hex (DIN 985) and thin hex (DIN 982) configurations, manufactured in carbon steel, stainless steel, alloy steel, and brass across metric and imperial thread forms conforming to DIN 985, DIN 982, ASME B18.2.2, ISO 7042, and ASTM A563 standards. All Nylon Lock Nuts are produced at our Dubai Investment Park facility under ISO 9001, ISO 45001, and ISO 14001 certified quality systems and exported to 70+ countries across the GCC, Middle East, Africa, and Asia.
✅ Full hex (DIN 985) & thin hex (DIN 982) versions available
✅ Carbon steel, stainless steel, brass & alloy grades
✅ Temperature rated up to 120°C (standard nylon insert)
✅ Standard & custom dimensions manufactured on request
✅ Full MTC documentation & batch traceability provided
✅ ISO 9001 · ISO 45001 · ISO 14001 certified
✅ Approved vendor: Saudi Aramco | ADNOC | SABIC
Get a competitive price — we respond within 24 hours
Nylon Lock Nuts – Nylock Nut Manufacturer & Supplier in UAE
Asia Bolts Industries LLC is a trusted Nylon Lock Nut manufacturer and supplier based in Dubai, UAE, with over 25 years of fastener manufacturing experience serving the oil & gas, petrochemical, construction, automotive, HVAC, and general engineering sectors across the GCC and global markets. Our Nylon Lock Nuts — commonly known as Nylock Nuts or Nylon Insert Lock Nuts — are the industry-standard choice for cost-effective, reliable vibration-resistant fastening in the broadest range of industrial, structural, and mechanical applications.
What Are Nylon Lock Nuts?
Nylon Lock Nuts are prevailing torque nuts in which a nylon insert — either a full ring or a partial collar — is bonded or pressed into a recess machined into the top face of the nut. When the nut is threaded onto a bolt, the nylon insert is forced to deform around the bolt thread profile, creating a controlled interference fit that generates a consistent prevailing torque resistant to self-loosening.
The key operating principle is thread interference friction — the deformed nylon grips the bolt thread flanks and resists rotation in the loosening direction without requiring any additional locking elements. This makes Nylon Lock Nuts a single-component locking solution that is faster to install, easier to inspect, and more cost-effective than multi-component locking systems for the vast majority of general industrial applications.
They are widely used in:
- General industrial machinery — gearboxes, conveyor systems, pump bases, motor mounts
- HVAC and air handling systems — fan assemblies, ductwork, compressor frames, chiller units
- Electrical enclosures and control panels — DIN rail mounting, busbar supports, cable management
- Automotive and vehicle assembly — suspension components, body panels, interior trim
- Construction and structural steelwork — secondary connections, cladding systems, handrails
- Oil & gas surface equipment — instrument brackets, skid frames, non-critical process connections
- Marine and offshore topsides — non-submerged connections, equipment mounting, handrails
- Agricultural and heavy equipment — machinery frames, implement attachments, cab assemblies
Types of Nylon Lock Nuts Available
1. Full Hex Nylon Lock Nut — DIN 985
The standard configuration — a full-height hexagonal nut with a nylon insert ring at the top. The most widely specified and stocked Nylon Lock Nut in the GCC market. Suitable for general industrial, structural, and mechanical applications across the full metric and imperial size range.
2. Thin Hex Nylon Lock Nut — DIN 982
A reduced-height version of DIN 985 for space-constrained applications where the full nut height cannot be accommodated. Provides the same nylon insert locking mechanism in a shallower profile. Common in automotive, HVAC panel assemblies, and compact mechanical designs.
3. All-Metal Prevailing Torque Nut (High Temperature Alternative)
For applications exceeding 120°C where nylon inserts are unsuitable, Asia Bolts also supplies all-metal prevailing torque nuts (DIN 980, ISO 7042) — distorted thread or top-crimped variants that provide locking performance at elevated temperatures without a nylon element.

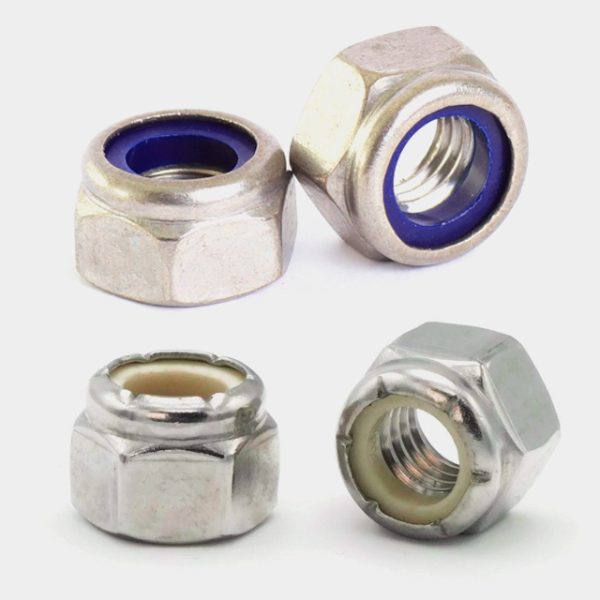

4. Stainless Steel Nylon Lock Nut
Full and thin hex Nylon Lock Nuts in AISI 304 and AISI 316 for corrosive environment applications — offshore topsides, marine equipment, chemical plant, and food-grade or pharmaceutical installations.
5. Large Diameter Nylon Lock Nuts
For heavy industrial and structural applications requiring M48 and above, Asia Bolts manufactures oversized Nylon Lock Nuts to customer drawing — available in carbon, alloy, and stainless steel grades with standard or custom nylon insert configurations.
Standards & Specifications
| Standard | Description |
|---|---|
| DIN 985 | Nylon insert lock nuts — full hex, metric coarse |
| DIN 982 | Nylon insert lock nuts — thin hex, metric coarse |
| DIN 980 | All-metal prevailing torque hexagon nuts |
| ISO 7042 | All-metal prevailing torque hexagon nuts |
| ISO 10511 | Prevailing torque type hexagon thin nuts with non-metallic insert |
| ISO 10512 | Prevailing torque type hexagon nuts with non-metallic insert — fine pitch |
| ASME B18.2.2 | Hex nuts and hex jam nuts — inch series |
| ASTM A563 | Carbon and alloy steel nuts |
| BS EN ISO 7042 | Prevailing torque all-metal hexagon nuts — property classes |
Fine pitch thread variants and non-standard nylon insert configurations are available on request.
Materials & Grades Available
| Material | Grade / Specification | Nylon Insert Type |
|---|---|---|
| Carbon Steel | Grade 6, 8, 10 (zinc plated standard) | Standard PA6 nylon (to 120°C) |
| Alloy Steel | ASTM A194 Grade 2H, 4 | Standard PA6 nylon (to 120°C) |
| Stainless Steel | AISI 304, 304L, 316, 316L | Standard PA6 nylon (to 120°C) |
| Brass | CuZn39Pb3 | Standard PA6 nylon (to 120°C) |
| Duplex Steel | UNS S31803 (2205) | High-temp nylon (to 150°C) on request |
| Carbon Steel (HT) | All-metal variant — no nylon | N/A — all-metal locking (DIN 980) |
High-temperature nylon insert variants rated to 150°C and 180°C are available on request for elevated temperature service conditions.
Dimensions & Size Range
| Parameter | Range |
|---|---|
| Thread Size | M3 to M64 (metric) | No. 4 to 2½” (imperial) |
| Thread Pitch | Coarse (standard) / Fine pitch on request |
| Nut Height | Full hex (DIN 985) / Thin hex (DIN 982) |
| Property Class | 6, 8, 10 (metric) | Grade A, B, C (ASTM A563) |
| Finish | Zinc electroplated (standard) / HDG / plain / black oxide |
| Temperature Rating | Up to 120°C standard / 150–180°C high-temp insert |
| Tolerance | Per ISO 4759-1 / ASME B18.2.2 |
