Full Threaded Stud Bolt

Full Threaded Stud Bolts for Maximum Versatility

When adjustable length and full thread engagement are critical, full threaded stud bolts (also known as all-thread rods or continuous thread studs) provide the ideal fastening solution. Asia Bolts Industries LLC supplies premium fully threaded stud bolts engineered for flange connections, equipment mounting, structural anchoring, and custom fabrication applications. With threads extending the entire length, these versatile fasteners allow precise length adjustment, double-nut locking, and compatibility with a wide range of nuts and hardware.

As a leading fastener manufacturer in UAE, we produce full threaded stud bolts in a comprehensive range of diameters, lengths, grades, and finishes. Each stud is precision thread-rolled to exacting international standards and undergoes rigorous quality control to ensure dimensional accuracy, mechanical strength, and corrosion resistance. Our Dubai-based facility ensures fast turnaround and reliable supply for oil & gas, petrochemical, construction, and industrial projects across the Middle East and globally.

Technical Specifications

Advantages of Full Threaded Stud Bolts

The continuous thread design offers unique benefits for diverse fastening applications:

• Maximum Adjustability: Threads along the entire length allow precise positioning of nuts for perfect alignment and clamp load distribution.
• Full Thread Engagement: Enables double-nut locking, jam nut configurations, and extended engagement for critical or vibration-prone applications.
• Versatile Length Options: Available in continuous lengths for on-site cutting or pre-cut to exact dimensions, reducing waste and installation time.
• Wide Compatibility: Pairs with standard hex nuts, heavy hex nuts, lock nuts, and washers across multiple standards and industries.
• Custom Fabrication: Easy to cut, bend, or weld for specialized applications, prototypes, or field modifications.
• Cost-Effective Inventory: Stocking continuous lengths reduces SKU complexity and allows flexible fulfillment of varying project requirements.

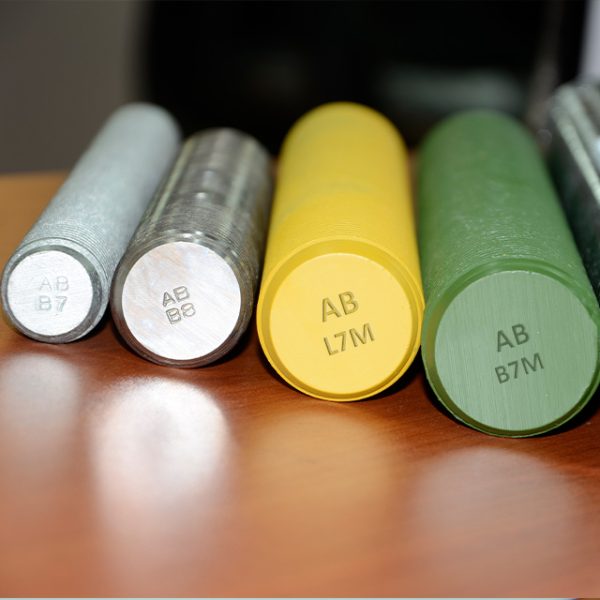

Grade Selection Guide

Choosing the correct grade ensures optimal performance for your application:

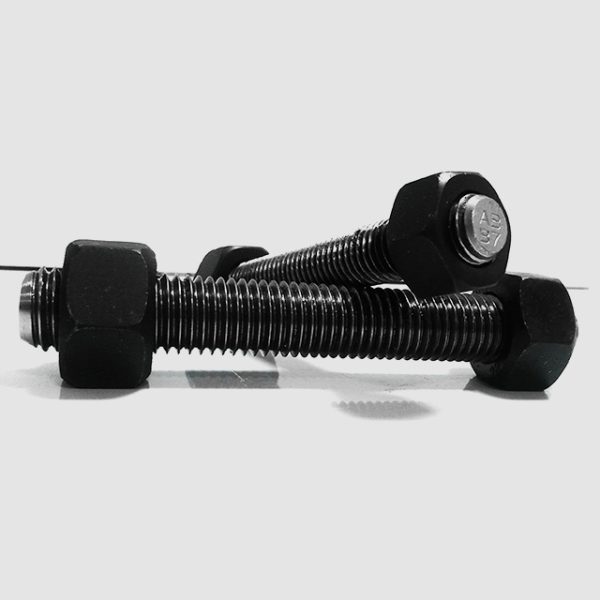

• ASTM A193 Grade B7: Most common grade for high-temperature and high-pressure flange connections in oil & gas and power generation. Alloy steel with excellent tensile strength.

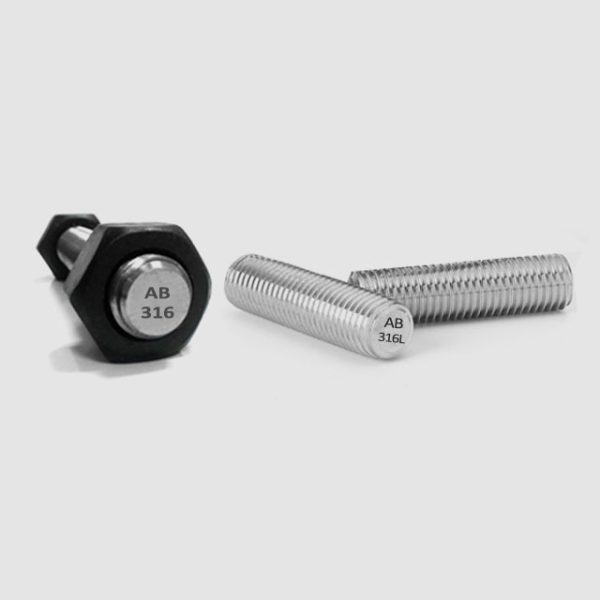

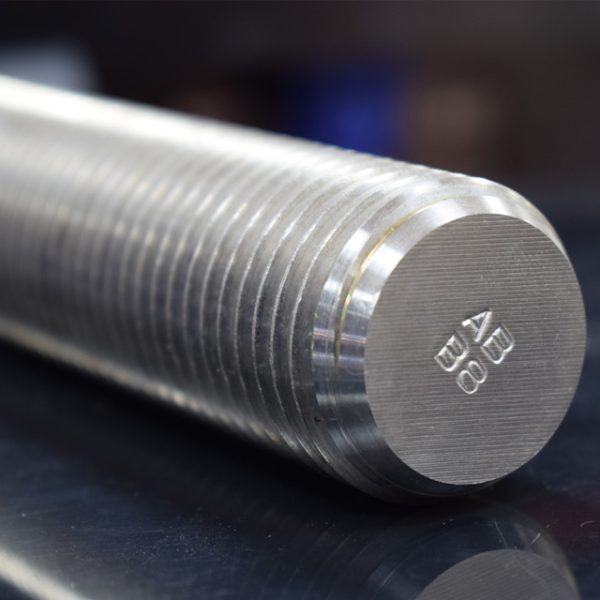

• ASTM A193 Grade B8/B8M: Stainless steel (304/316) for corrosion-resistant applications in chemical processing, marine, and food industries.

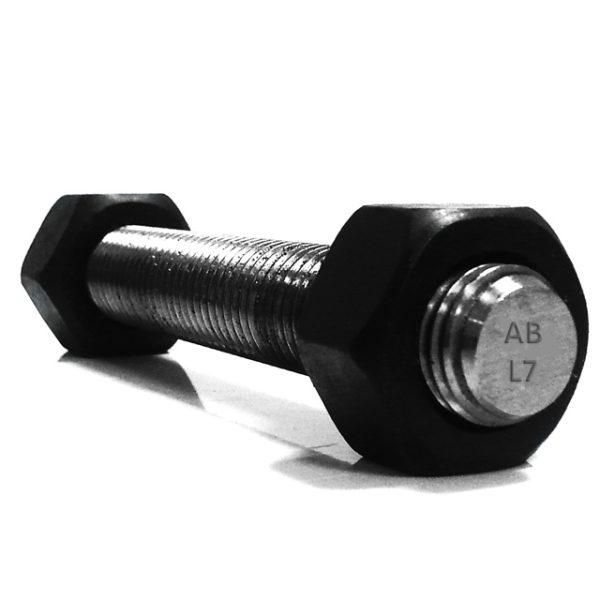

• ASTM A320 Grade L7: Low-temperature alloy steel for cryogenic service down to -101°F (-74°C); impact tested per ASTM A320.

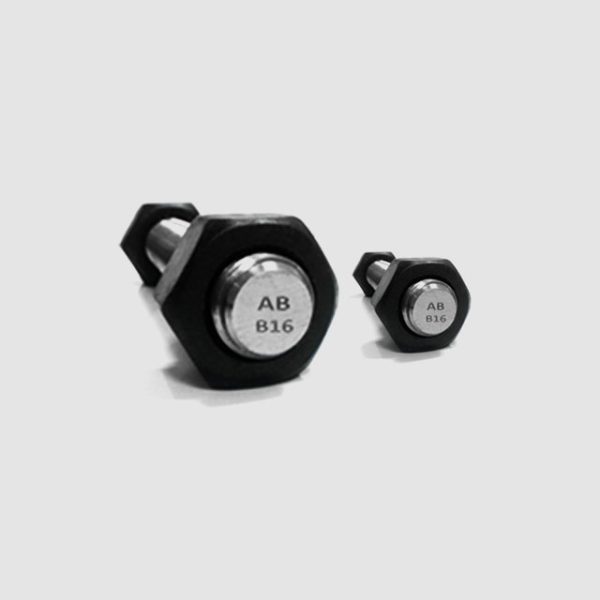

• ASTM A193 Grade B16: High-temperature alloy steel for extreme service up to 1100°F (593°C) in power plants and refineries.
• Metric Class 8.8/10.9: Medium to high-strength grades for general industrial, construction, and machinery applications.
• Metric Class 12.9: Ultra-high strength for critical structural and heavy equipment applications requiring maximum load capacity.

Full Threaded vs. Double-End Stud Bolts

Understanding the distinction helps you select the right stud for your application:

• Thread Coverage: Full threaded studs have threads along the entire length; double-end studs have threads only on both ends with an unthreaded shank in the center.
• Application: Full threaded for adjustable-length applications, custom cutting, and double-nut locking; double-end for flange connections where the unthreaded shank provides shear strength.
• Load Distribution: Double-end studs concentrate load on the unthreaded shank (higher shear capacity); full threaded distribute load across threads (better for tension applications).
• Installation: Full threaded offer more flexibility for field adjustment; double-end require precise length specification during ordering.
• Cost: Full threaded are often more economical for inventory flexibility; double-end may be preferred for critical flange applications per engineering specifications.

Manufacturing Process & Quality Control

At Asia Bolts Industries LLC, every full threaded stud bolt undergoes a controlled manufacturing process:

• Material Verification: PMI testing and mill certificates to confirm steel grade and chemical composition per ASTM or customer specification.
• Precision Thread Rolling: Cold-rolled threads using precision dies for superior fatigue strength, consistent Class 6g/6H tolerance, and smooth nut engagement.
• Heat Treatment: Quenching and tempering for alloy grades to achieve specified hardness, yield strength, and impact toughness per ASTM standards.

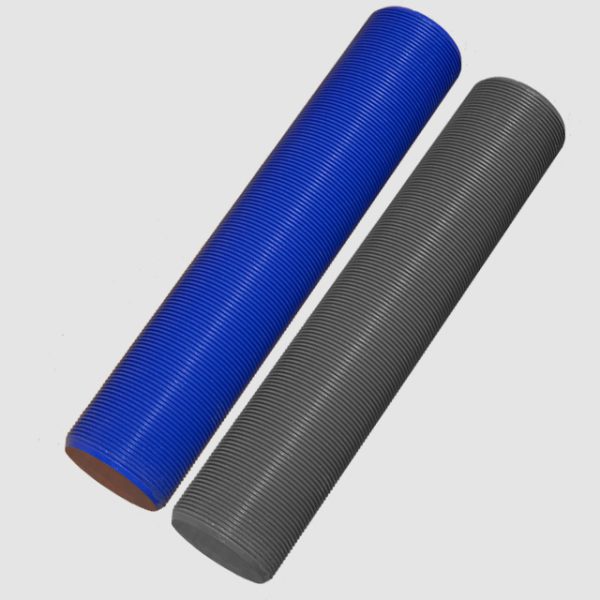

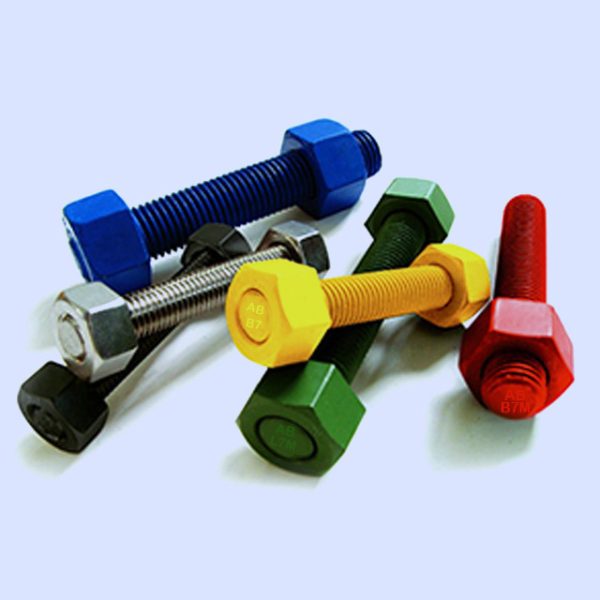

• Surface Treatment: Hot dip galvanizing per ASTM A153, PTFE coating, epoxy powder coating, or other finishes with thickness verification and adhesion testing.
• Length Cutting: Precision sawing or shearing to exact lengths with deburred ends; continuous lengths available for on-site cutting.
• Dimensional Inspection: Laser measurement or CMM verification of diameter, thread pitch, length tolerance, straightness, and end squareness.
• Mechanical Testing: Tensile testing, yield strength verification, hardness testing, elongation measurement, and optional proof load testing per ASTM F606.
• Final Quality Audit: 100% visual inspection plus statistical sampling for thread quality, coating integrity, and documentation completeness.

Installation Best Practices

To ensure optimal performance of full threaded stud bolts, follow these guidelines:

• Proper Length Selection: Ensure sufficient thread engagement (minimum 1x diameter for standard applications; 1.5x for critical/high-vibration service) plus space for nuts and washers.
• Grade Matching: Always pair studs with nuts of equal or higher strength grade to ensure the nut does not fail before the stud under load.
• Torque Control: Use calibrated torque wrenches and follow specified torque values; apply lubricant or anti-seize for consistent torque-tension relationship, especially with coated studs.
• Double-Nut Locking: For vibration-prone applications, use two nuts tightened against each other (jam nut configuration) to prevent loosening.
• Corrosion Protection: Select finish based on environment: HDG for outdoor/industrial, PTFE/epoxy for chemical exposure, stainless for marine/coastal.
• Inspection: Periodically inspect studs in service for signs of corrosion, thread damage, or loosening; replace as part of preventive maintenance schedules.
